Contactor vs. Relay: What’s the Difference and When Should You Use Each?
Contactor vs. Relay: Understanding the Key Differences
If you’ve ever looked inside an electrical control panel, you’ve likely seen devices called contactors and relays. At first glance, they look similar and even operate on the same basic principle—using an electromagnetic coil to control electrical contacts. However, they are designed for very different purposes.
Knowing the difference between a contactor and a relay is essential for electricians, engineers, technicians, DIY enthusiasts, and anyone working with electrical systems. Using the wrong device can lead to equipment failure, overheating, or even safety hazards.
In this guide, we’ll explain how contactors and relays work, their differences, and when each should be used.
What Is a Relay?
A relay is an electrically operated switch that uses a small electrical current to control another electrical circuit.
When electricity flows through the relay’s coil, it creates a magnetic field that moves internal contacts, opening or closing a circuit.
Relays are commonly used to:
- Control low-power circuits
- Isolate electrical systems
- Automate switching
- Protect electrical equipment
- Interface between sensors and larger systems
Common Relay Applications
- Automotive electronics
- Home automation
- Alarm systems
- HVAC controls
- Industrial control panels
- PLC (Programmable Logic Controller) systems
What Is a Contactor?
A contactor is a heavy-duty type of relay specifically designed to switch high-current electrical loads.
Like a relay, it uses an electromagnetic coil to operate contacts. However, contactors are built to safely handle much larger amounts of electrical current and are engineered for frequent switching.
Contactors are primarily used for controlling:
- Electric motors
- Air conditioners
- Water pumps
- Compressors
- Industrial machinery
- Lighting systems
- Heating equipment
How Do They Work?
Both devices operate using the same basic principle.
- Electrical power energizes the coil.
- The coil creates a magnetic field.
- The magnetic field pulls an armature.
- The contacts either open or close.
- When power is removed, a spring returns the contacts to their normal position.
Although the operating principle is similar, the internal construction is significantly different.

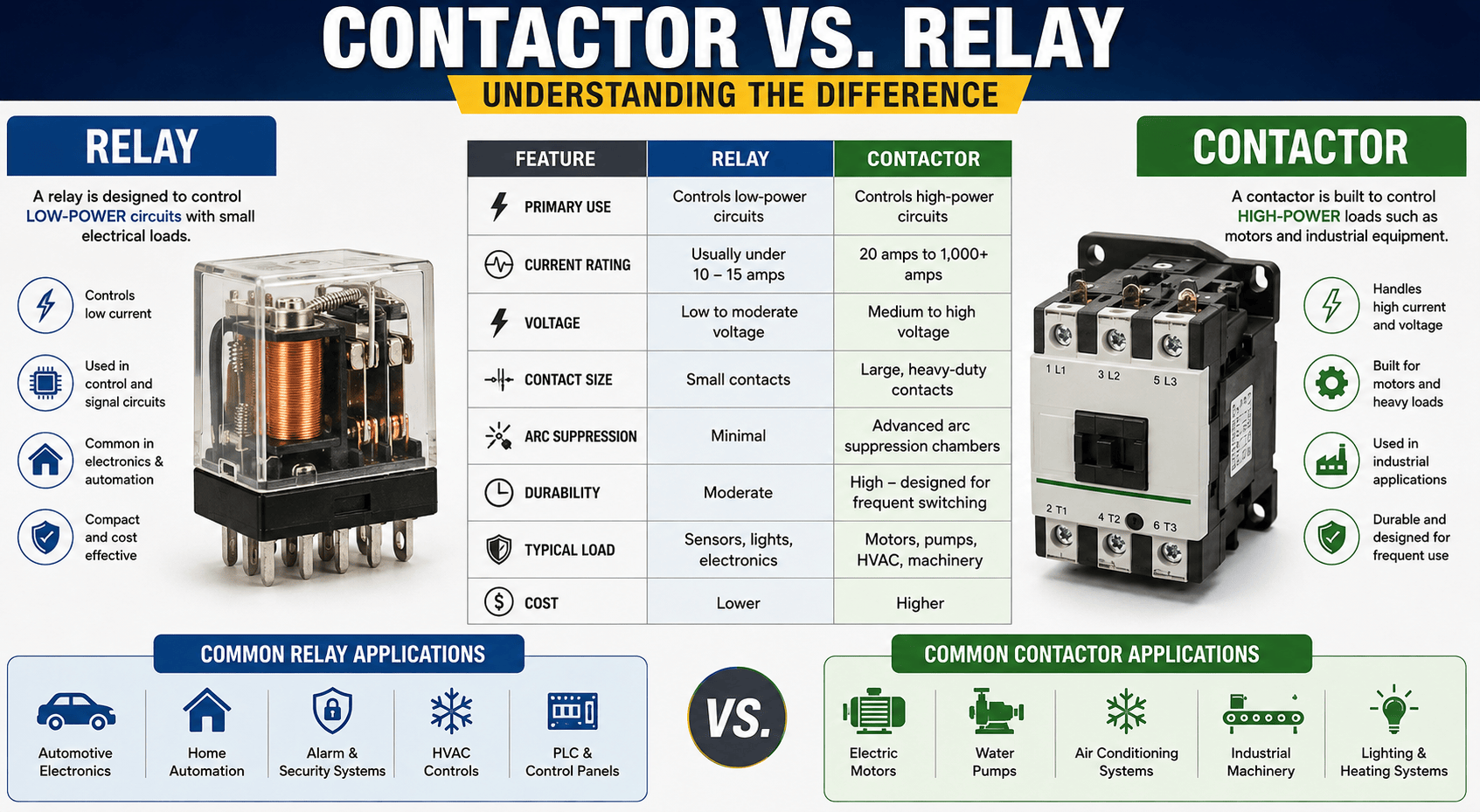

Major Differences Between a Contactor and a Relay
| Feature | Relay | Contactor |
|---|---|---|
| Purpose | Controls low-power circuits | Controls high-power loads |
| Current Rating | Usually under 10–15 amps | Often 20 to 1,000+ amps |
| Voltage | Low to moderate | Medium to high voltage |
| Contact Size | Small | Large, heavy-duty contacts |
| Arc Suppression | Minimal | Advanced arc suppression chambers |
| Durability | Moderate | Designed for frequent heavy switching |
| Safety | Lower power applications | Industrial-grade protection |
| Typical Load | Sensors, lights, electronics | Motors, pumps, HVAC equipment |
Current Capacity
One of the biggest differences is the amount of current each device can safely switch.
Relay
Most relays are designed for:
- 5 amps
- 10 amps
- 15 amps
- 20 amps (depending on type)
These are ideal for smaller electrical loads.
Contactor
Contactors commonly handle:
- 20 amps
- 40 amps
- 100 amps
- 200 amps
- 600 amps
- More than 1,000 amps in industrial settings
Built-In Safety Features
Contactors include several safety features that most relays do not.
These may include:
- Arc suppression chambers
- Larger contact gaps
- Spring-loaded contacts
- High-temperature insulation
- Replaceable contacts on some models
These features allow contactors to safely disconnect large electrical loads without damaging the contacts.
Normally Open vs. Normally Closed Contacts
Relays
Relays commonly include both:
- Normally Open (NO)
- Normally Closed (NC)
This makes them versatile for control circuits.
Contactors
Most contactors are designed with:
- Normally Open (NO) main power contacts
Auxiliary contacts may provide additional NO or NC contacts for control functions.
Common Applications
Relay Applications
- Doorbells
- Security systems
- Smart home controls
- Vehicle electrical systems
- PLC outputs
- Electronic appliances
Contactor Applications
- Three-phase motors
- Air conditioning compressors
- Industrial conveyor belts
- Water treatment plants
- Elevators
- Factory automation
- Large lighting systems
Can a Relay Replace a Contactor?
Generally, no.
A relay is not designed to safely switch large electrical loads.
Using a relay where a contactor is required may result in:
- Burned contacts
- Excessive heat
- Electrical arcing
- Equipment failure
- Fire hazards
Can a Contactor Replace a Relay?
Technically, yes, but it usually isn’t practical.
A contactor can switch smaller loads, but it is:
- Larger
- More expensive
- Louder during operation
- Uses more coil power
For small control circuits, a relay is the better choice.
Advantages of Relays
- Compact size
- Lower cost
- Easy to install
- Ideal for electronic control systems
- Wide range of contact configurations
- Excellent for automation
Advantages of Contactors
- Handles high current safely
- Long service life
- Built for continuous industrial use
- Excellent arc suppression
- Reliable motor control
- Greater electrical safety
Which One Should You Choose?
Choose a relay if you’re controlling:
- Sensors
- Small lights
- Electronic devices
- Automation circuits
- Low-current equipment
Choose a contactor if you’re controlling:
- Motors
- Compressors
- HVAC systems
- Pumps
- Industrial machinery
- High-power electrical loads
Frequently Asked Questions
Is every contactor a relay?
A contactor operates on the same electromagnetic switching principle as a relay, but it is specifically engineered for switching high-current power loads.
Why are contactors louder?
Contactors use larger electromagnetic coils and heavier moving components, which often produce a noticeable “click” when they engage.
Do contactors wear out?
Yes. Over time, repeated switching causes the contacts to wear due to electrical arcing. Industrial contactors are designed so their contacts can often be inspected and, on some models, replaced.
Are relays used in cars?
Yes. Automotive relays control components such as headlights, cooling fans, fuel pumps, horns, and starter circuits.
Conclusion
Although contactors and relays share similar operating principles, they serve different roles in electrical systems. A relay is best suited for low-current control and automation tasks, while a contactor is built to safely switch high-current loads such as motors, pumps, and HVAC equipment. Understanding the differences between these two devices helps ensure safe, reliable, and efficient operation of electrical equipment, whether you’re working on a simple home project or maintaining industrial machinery.
